Problems in LabVIEW due to limits and measurements

Answered

Follow

Iván Preciado

• June 24, 2025 20:53

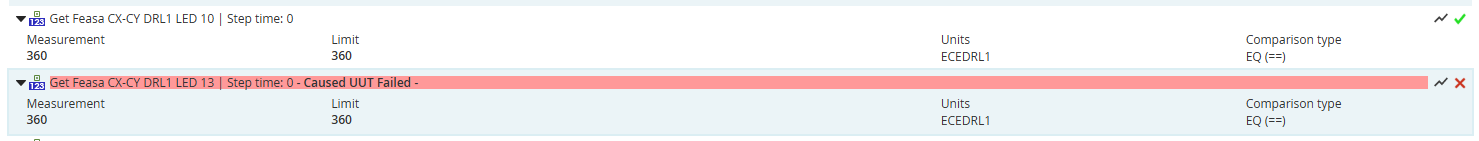

When sending data from LabVIEW with the result as "Equal" and "Pass", the page displays the result as "Fail".

0

•

  Iván Preciado

  • June 24, 2025 20:58

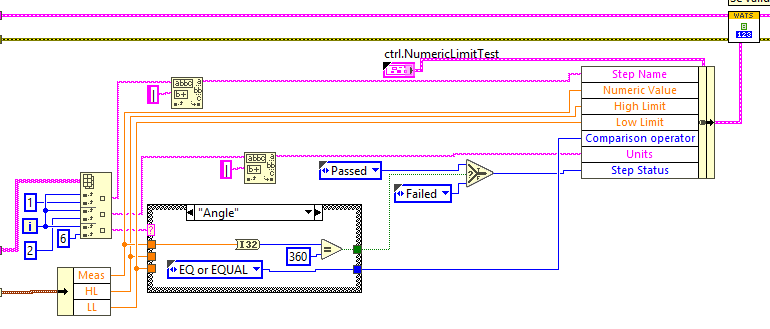

  This is my Labview code

  0

  Comment actions Permalink
•

  Tom Andres Lomsdalen

  • June 30, 2025 11:58
  • Edited

  Hi Ivan,

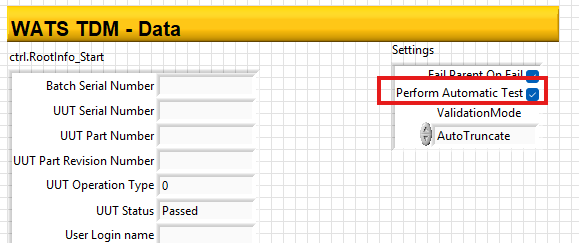

  Try to use the Settings input and set the Perform Automatic Test to TRUE.

  See also the PutUUT example







  1

  Comment actions Permalink
•

  Iván Preciado

  • July 02, 2025 21:04

  Thanks. I've entered the values ​​you mentioned in your comment directly into the data settings. It works correctly now.

  0

  Comment actions Permalink
