| Default User Level: | Analyzer, Manager |

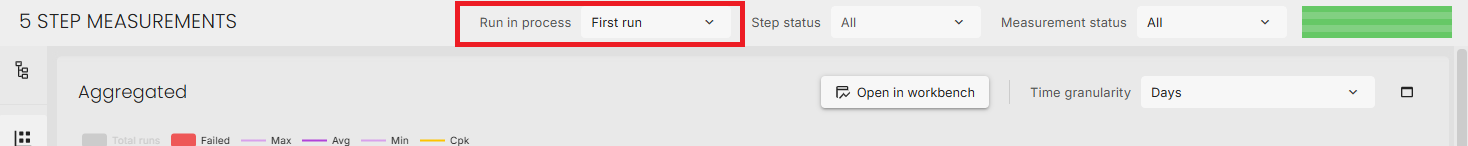

The default Test step analysis filter contains a “Run in process” option allowing you to look at units only tested first (time) run, second (time) run etc. Selecting e.g. second run would only return results for unit tested second time, often a lower count than first run.
A option in the “details view” allow you to override this filter setting but also aggregate data from previous run.
Example:
First Run (1)
Test 10 units measuring 100 to 1000. Limits between 400 and 800
Second Run (2)
Retest of the 5 units that was outside limits in first run:
Second and earlier (1+2)
Display the 5 units that was tested in the first run (measuring 400, 500, 600, 700, 800) + the 5 units that was tested the second time (600, 500, 300, 900, 1000)
Third Run (3) - only display units tested the third time
Third and earlier (1+2+3) - units tested the first, second and/or third time
Last Run - Display all units tested in it's end run
