The Serial Number History report provides full traceability for one or more serial numbers.
It offers a complete, chronological record of a product or unit throughout its lifecycle from production to service and allows users to view all related test, repair, and process data associated with a specific serial number.
This report is particularly useful for tracking product performance, identifying recurring issues, and ensuring compliance with quality and service requirements.

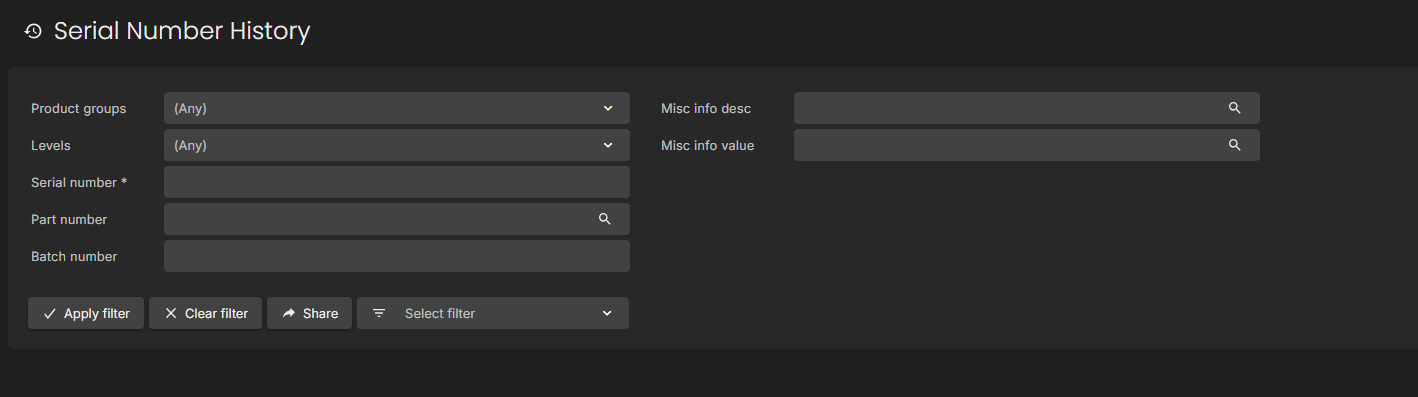

Filter
Use the Filter section to narrow your search and define which serial numbers to include in the report.
The Serial Number property is required.
-
You can use:
A full serial number
Wildcards (%) to represent one or more characters
Multiple serial numbers separated by semicolons ( ; )
Once your filter parameters are defined, click Apply Filter to run the report.
For more information, see the article Using the report filter, which explains filtering in detail.
Grids
After applying the filter, the report displays data in multiple grid layouts:

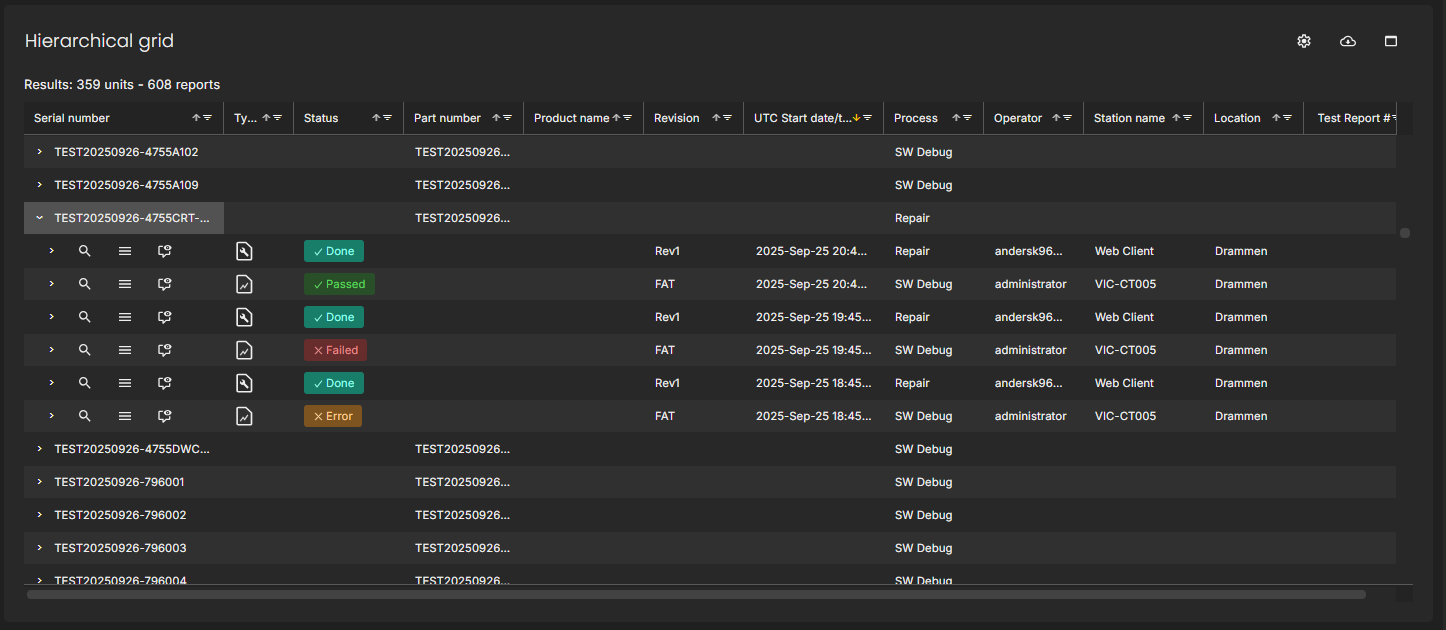

Hierarchical Grid

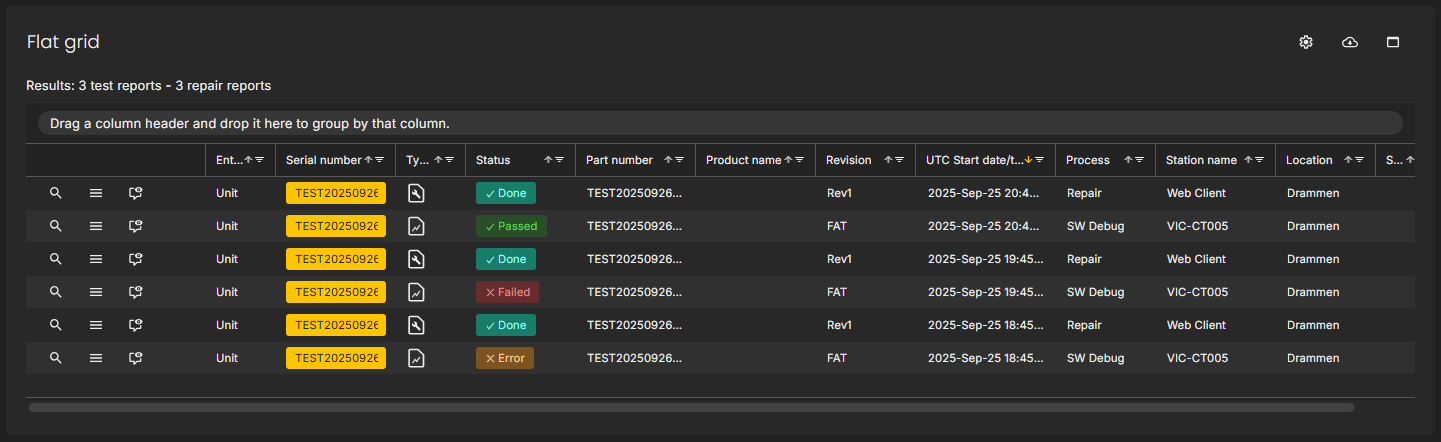

Flat Grid

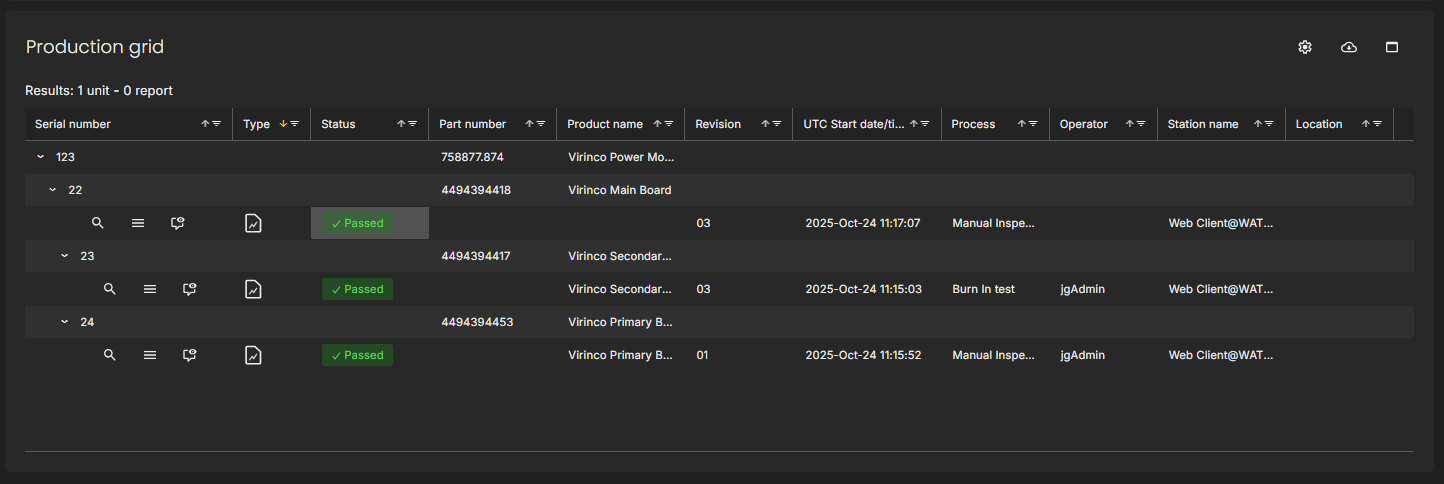

Production Grid
Each grid presents serial number data from a different perspective to support various analysis needs.
Use the row arrow in the Hierarchical and Production grids to expand or collapse rows.
Click the magnifying glass icon to open and view the associated UUT or UUR report.
The article Using and customizing the report grids describes grids in further detail.
Comments
1 comment
Hi
Is it possible to group the flat view below according to the info column (unit, sub unit)?
It looks on my side it's not working as intended or I might doing something wrong.

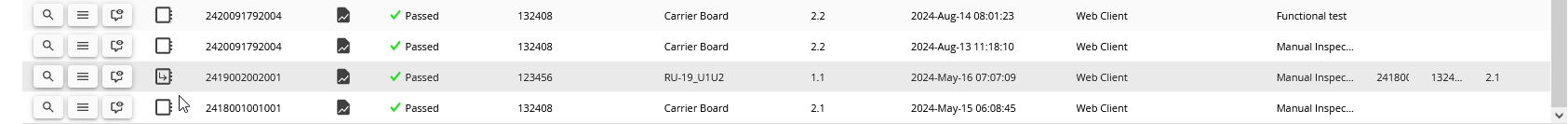

Here we can see there are units and sub units listed.
If I then group the Info column it doesn't group into unit and sub units. It creates only one group with all items (units and sub units).
